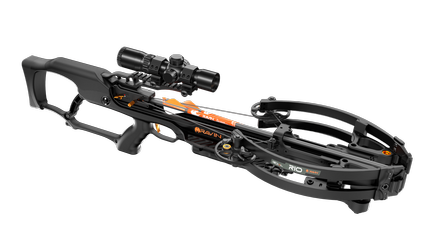

Ravin R10 Crossbow with Helicoil Technology - Black

ITEM NUMBER:

RPR014

UPC:

815942020142

BRAND:

Ravin Crossbows

MFG PRODUCT #:

R014

SPECIFICATIONS

ARCHERY BOLTS ARROWS INCLUDED:

3

ARCHERY COCKING DEVICE:

VERSA DRAW INTEGRATED

ARCHERY COLOR:

PREDATOR CAMO

ARCHERY DRAW WEIGHT:

12 LBS

ARCHERY FOOT POUNDS OF ENERGY:

142

ARCHERY GRAIN:

400 GR

ARCHERY ITEM TYPE:

CROSSBOW

ARCHERY MASS WEIGHT:

6.8 LBS

ARCHERY OPTICS:

ILLLUMINATED SCOPE

ARCHERY POWER STROKE:

11"

ARCHERY QUIVER CAPACITY:

3-ARROW

ARCHERY QUIVER INCLUDED:

YES

ARCHERY TRIGGER TYPE:

TRAC TRIGGER

ARCHERY VELOCITY:

UP TO 400 FPS

ARCHERY WIDTH:

10.5"

ARCHERY WIDTH (COCKED):

6"

BRAND:

RAVIN CROSSBOWS

CA PROP 65:

YES

LENGTH:

33"

WEIGHT:

6.8 LBS

DESCRIPTION

HELICOIL® TECHNOLOGY

The engine behind Ravin crossbows. This revolutionary technology has several industry changing advantages that all work together to create the most accurate crossbow ever designed. HeliCoil technology coils cables away from both the top and bottom of the cams in helical grooves keeping the cams perfectly balanced. This allows the cams to rotate an incredible 340 degrees, while both cams remain perfectly level when drawing and shooting the crossbow. This revolutionary design creates an incredibly compact crossbow packed full of innovative features that produce rifle-like downrange accuracy.

VERSA-DRAW™ COCKING SYSTEM

One of the revolutionary design advantages provided by HeliCoil technology is the Versa-Draw Cocking System. Working in conjunction with the Trac-Trigger Firing System this ultra-compact fully integrated cocking mechanism is built into the sleek stock design. Featuring a minimal 12 pounds of cocking force the Versa-Draw Cocking System is ambidextrous and has the ability to cock and un-cock your Ravin crossbow. This unique Helicoil advantage provides an easy to use, fully integrated cocking mechanism delivering unmatched accuracy with every shot.

TRAC-TRIGGER™ FIRING SYSTEM

A patented built-in trigger mechanism that slides forward on the rail and clasps directly to the precise center of the string every time the bow is drawn, allowing for straight-line nock travel. This unique HeliCoil advantage creates a perfectly balanced draw for unmatched down range accuracy with every shot.

FRICTIONLESS™ FLIGHT SYSTEM

This patented technology allows the arrow and string to free float above the rail, eliminating friction for consistent accuracy and increased string and cable life. This unique HeliCoil advantage delivers astounding target accuracy with every shot.

INCLUDES

Built-In Cocking Mechanism
Anti-Dry Fire/Auto Safety
Built-in Sling Mounts
Removable Draw Handle
Quiver/Mounting Bracket
3 Ravin .003 Premium Arrows & Field Tips (400 Grain Total)
100 Yard Illuminated Scope

California Proposition 65 WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
